Output Interface For Blow Dryer

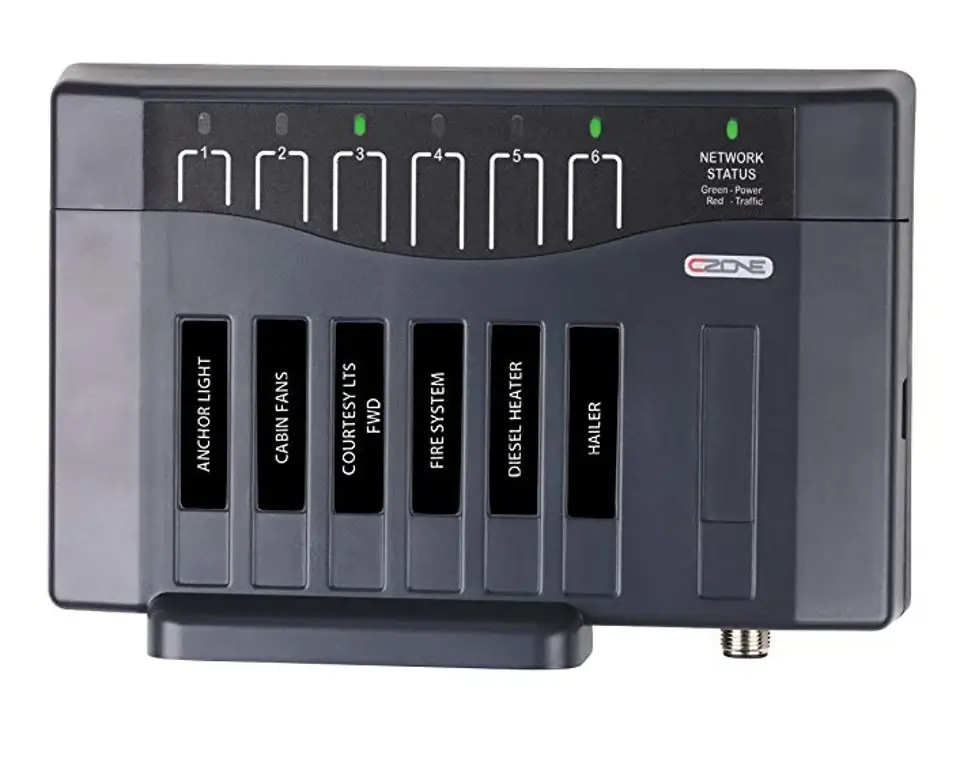

The Mastervolt 80-911-0009-00 Output Interface is an advanced digital switching module designed to replace traditional circuit breaker and fuse panels. This unit features six high-power, robust output channels that provide power supply, control, and fusing for circuits, integrating additional functionalities such as timers and dimmers. Each channel can handle up to 20 amps, and multiple channels can be bridged together for higher current switching

The Output Interface is equipped with a large 6-way plug that allows connections to cables up to 16 mm² (6 AWG) in size or multiple smaller conductors, simplifying installation without the need for specialized crimp terminals or expensive tools. A protective flexible boot offers protection to the connections from harsh environmental conditions, ensuring durability and reliability

This module includes four levels of backup fusing, including manual override, as required by ABYC standards. It also features programmable software ‘fuse’ sizes and allows high and low alarm levels to be set for all inputs, enhancing safety and monitoring capabilities

The small, non-metallic case is easy to install and provides IPX5 protection against water ingress.
